At Compaero India, reliability is crucial for mission-critical interconnect solutions. Our AS85049 qualified MIL-Spec products are essential in systems where failure is not an option. We provide a diverse selection of QPL Qualified backshells, showcasing precision engineering and excellence. Each product is designed, manufactured, and tested to meet AS85049 standards for optimal performance in defense and aerospace applications.
Choose Compaero India for MIL-Spec products that ensure top quality and responsive service when performance matters most.

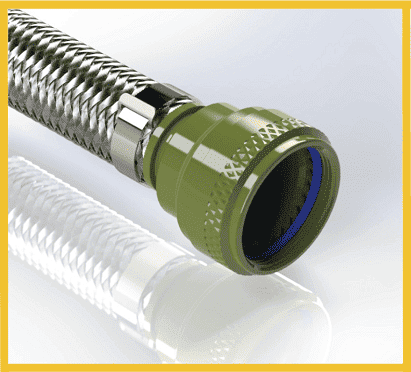

Shown on the right is a Shield Termination Boot Accommodation Adapter, featuring Olive Drab Cadmium -Electroless Nickel Selective Plating with Polysulfide Sealant Strips.

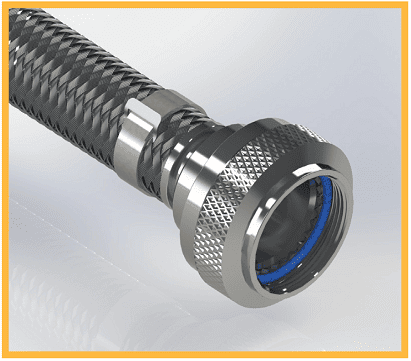

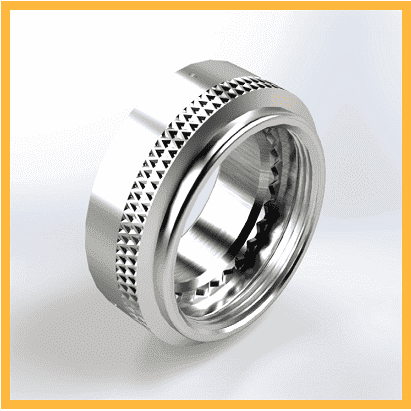

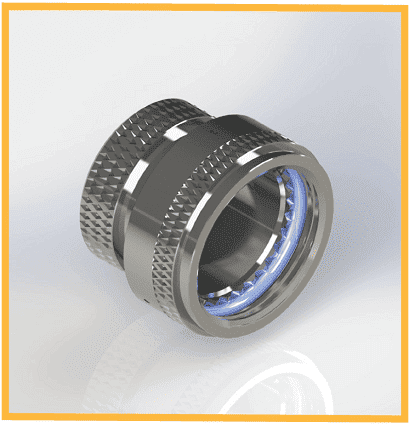

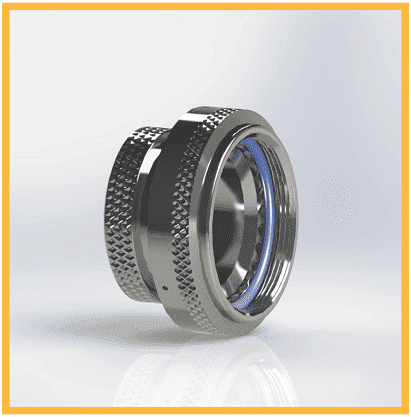

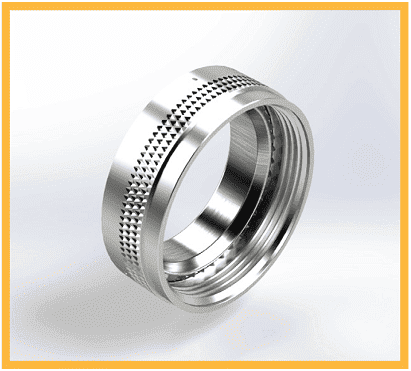

BACKNUT
BACKNUT
BACKNUT

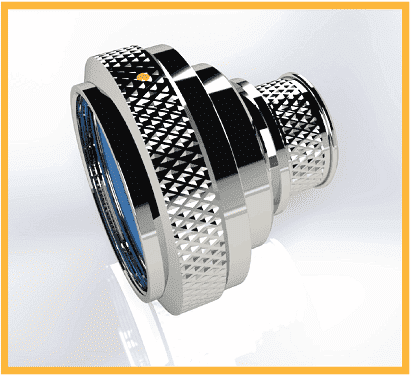

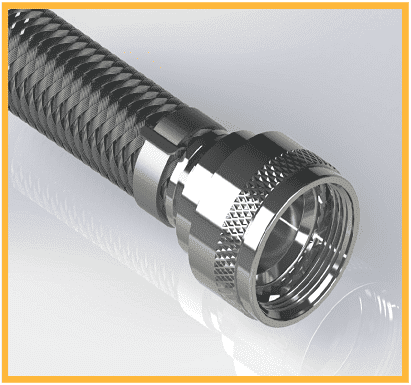

SHRINK BOOT ADAPTER
SHRINK BOOT ADAPTER
SHRINK BOOT ADAPTER
SHRINK BOOT ADAPTER

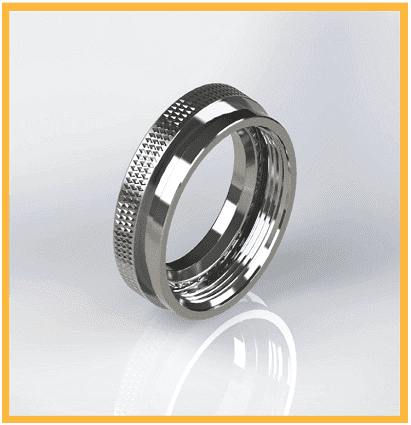

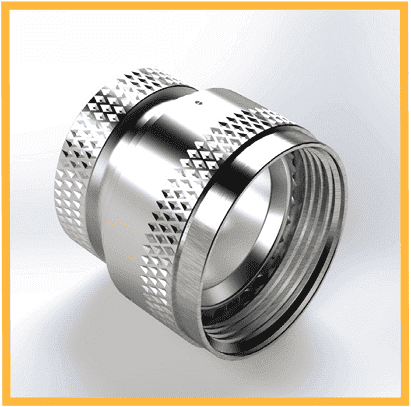

BAND LOCK ADAPTERS
BAND LOCK ADAPTERS
BAND LOCK ADAPTERS

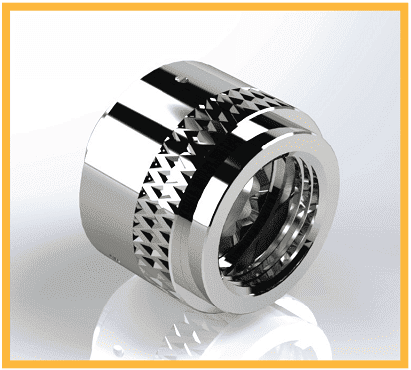

PRE-SHIELDED BAND LOCK ADAPTERS
PRE-SHIELDED BAND LOCK ADAPTERS
PRE-SHIELDED BAND LOCK ADAPTERS
| AS85049 SPECIFICATION NUMBER |
PART IDENTIFICATION NUMBER |
MILITARY PART NUMBER SUPERSEDED |
DESCRIPTION | CONNECTOR INTERFACE | PAGE NO. |
|---|---|---|---|---|---|
| AS85049/14 | M85049/14- M85049/14 N M85049/14 S |
MIL-C-85049/14 | E Nut E Nut, Non-Detent, Self Locking E Nut, Detented, Self-Locking |
MIL-DTL-38999, Ser. III &
IV EN3645 |
9 |
| AS85049/27 | M85049/27- M85049/27 N M85049/27 S |
MIL-DTL-38999/1 | E Nut E Nut, Non-Detent, Self-Locking E Nut, Detented, Self-Locking |
MIL-DTL-38999 Series I & II | 10 |
| AS85049/31 | M85049/31- M85049/31 N M85049/31 S |
MS3416 | E Nut E Nut, Non-Detent, Self-Locking E Nut, Detented, Self-Locking |
AS50151; MIL-DTL-26482, Series 2; AS81703 Series 3; MIL-DTL-83723, Series III | 12 |
| AS85049/60 | M85049/60-1 M85049/60-2G |
MS3158 MS3416 |
Straight Shrink Boot Adapter Straight Shrink Boot Adapter |
AS50151; MIL-DTL-26482, Series 2; AS81703 Series 3; MIL-DTL-83723, Series III | 14 & 15 |
| AS85049/62 | M85049/62 | M38999/2 | Straight Shrink Boot Adapter | MIL-DTL-38999 Ser. I & II | 16 |
| AS85049/69 | M85049/69 | MIL-C-85049/69 | Straight Shrink Boot Adapter | MIL-DTL-38999 Ser. III &
IV EN3645 |
17 |
|
AS85049/82 AS85049/83 AS85049/84 |
M85049/82 M85049/83 M85049/84 |
MIL-C-85049/82 MIL-C-85049/83 MIL-C-85049/84 |

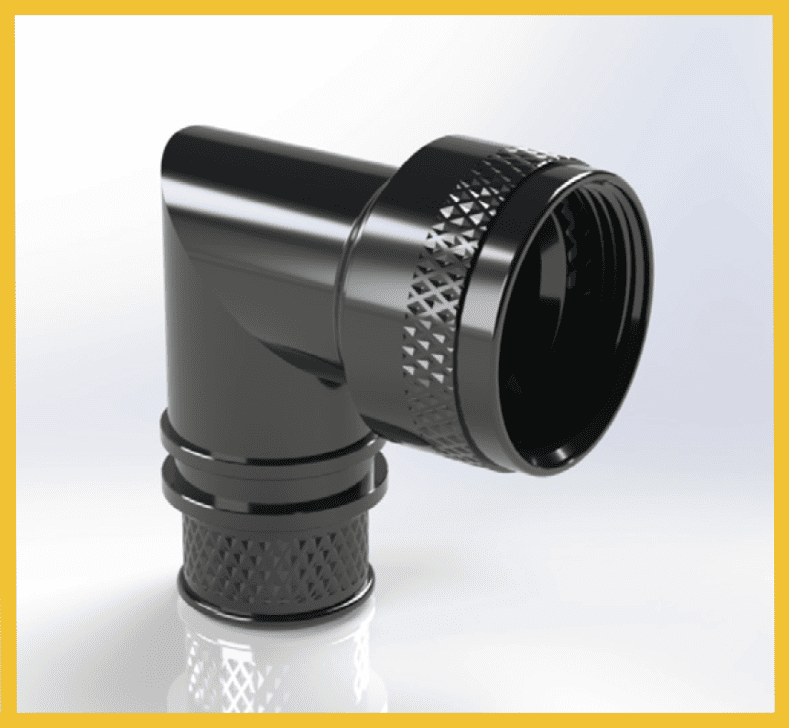

Straight Banding Backshell 45° Banding Backshell 90° Banding Backshell |
AS50151; MIL-DTL-26482, Series 2; AS81703 Series 3; MIL-DTL-83723, Series III | 18 |
|
AS85049/85 AS85049/86 AS85049/87 |
M85049/85 M85049/86 M85049/87 |
MIL-C-85049/85 MIL-C-85049/86 MIL-C-85049/87 |

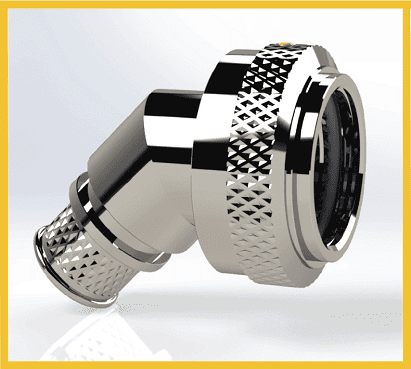

Straight Banding Backshell 45° Banding Backshell 90° Banding Backshell |
MIL-DTL-38999 Series I & II | 20 |
|
AS85049/88 AS85049/89 AS85049/90 |
M85049/88 M85049/89 M85049/90 |
MIL-C-85049/88 MIL-C-85049/89 MIL-C-85049/90 |
Straight Banding Backshell 45° Banding Backshell 90° Banding Backshell |
MIL-DTL-38999 Ser. III &
IV EN3645 |
24 |
| AS85049/109 | M85049/109 | 88064 | Straight Shield Sock Shrink Boot Adapter with Detented or Non-Detent Self-Locking or Non-Self Locking Coupling Nut | AS50151; MIL-DTL-26482, Series 2; AS81703 Series 3; MIL-DTL-83723, Series III | 26 |
| AS85049/111 | M85049/111 | 89018 | 90° Shield Sock Shrink Boot Adapter with Optional Self-Locking Coupling Nut | AS50151; MIL-DTL-26482, Series 2; AS81703 Series 3; MIL-DTL-83723, Series III | 26 |
| AS85049/112 | M85049/112 | 89014 | Straight Shield Sock Shrink Boot Adapter with Optional Self-Locking Coupling Nut | MIL-DTL-38999 Series I & II | 28 |
| AS85049/114 | M85049/114 | 89016 | 90° Shield Sock Shrink Boot Adapter with Detented or Non-Detent Self-Locking Coupling Nut | MIL-DTL-38999 Series I & II | 28 |
| AS85049/115 | M85049/115 | 89013 | Straight Shield Sock Shrink Boot Adapter with Optional Self-Locking Coupling Nut | MIL-DTL-38999 Ser. III &
IV EN3645 |
30 |
| AS85049/117 | M85049/117 | 89020 | 90° Shield Sock Shrink Boot Adapter with Optional Self-Locking Coupling Nut | MIL-DTL-38999 Ser. III &
IV EN3645 |
30 |
| MIL FINISH CODE |
BASE MATERIAL OF ADAPTER BODY AND COUPLING NUT |
FINISH DESCRIPTION |
|---|---|---|
| A | Aluminum Alloy |
Black Anodize, in accordance with Class 2 of
MIL-A-8625, Type II, -65° to +175° C [500 Hour Salt Spray] |
| W | Aluminum Alloy |
Cadmium, Olive Drab over suitable underplate,
-65° to +175° C (Not for use in space application) [1000 Hour Salt Spray] |
| N | Aluminum Alloy |
Electroless Nickel, in accordance with
AMS-C-26074 or AMS2404, -65° to +200° C (Not for Navy use) [96 Hour Salt Spray] |
| Z | Aluminum Alloy |
Zinc Nickel in accordance with ASTM B84 or
AMS2417 over suitable underplate. Color will be Black, Conductive and
Non-Reflective. Final finish will be electrically Conductive, -65° to +175°
C. (Not for use in space application) [1000 Hour Salt Spray] |
| P | Aluminum Alloy |
Cadmium, Olive Drab over electroless nickel,
with Polysulfide sealant strips, (Selective Plating), -65° to +175° C. (Not for use in space application) [96 Hour Salt Spray] |
| ZP | Aluminum Alloy |
Zinc Nickel over electroless nickel, with
Polysulfide sealant strips, (Selective Plating), -65° to +175° C. (Not for use in space application) [96 Hour Salt Spray] |
Please note that the colours shown above are for illustrative purposes only-actual finish color may vary.
The below figures are provided to support operators already trained in the installation of heat shrinkable products and harnessing components. They identify the recommended torque values to be used when installing adapters onto circular electrical connectors, to consistently tighten adapters in a controlled manner.
For any questions or further instructions please contact us and we will be happy to assist you.
| SHELL SIZE |
MIL-DTL-26500 MIL-DTL-81511 MIL-DTL-26482 S1 MIL-DTL-38999 S1/S2 MIL-DTL-5015 Solder |
MIL-DTL-26482 S2 | MIL-DTL-28840 MIL-DTL-83723 | MIL-DTL-22992 MIL-DTL-5015 Crimp | MIL-DTL-38999 S3/S4 |
|---|---|---|
| TORQUE VALUES in-lb / Nm | TORQUE VALUES in-lb / Nm | |
| 08/09 | 30-40 3.4-4.5 | 51-61 5.8-6.9 |
| 10/11 | 30-40 3.4-4.5 | 71-81 8.0-9.2 |
| 12/13 | 35-45 4.0-5.1 | 103-113 11.6-12.8 |
| 14/15 | 35-45 4.0-5.1 | 111-121 12.5-13.7 |
| 16/17 | 35-45 4.0-5.1 | 111-121 12.5-13.7 |
| 18/19 | 35-45 4.0-5.1 | 111-121 12.5-13.7 |
| 20/21 | 75-85 8.5-9.6 | 131-141 14.8-15.9 |
| 22/23 | 75-85 8.5-9.6 | 131-141 14.8-15.9 |
| 24/25 | 75-85 8.5-9.6 | 131-141 14.8-15.9 |
| 28 | 115-125 13.0-14.1 | 143-153 16.2-17.3 |
| 32 | 115-125 13.0-14.1 | 143-153 16.2-17.3 |
| 36 | 115-125 13.0-14.1 | 143-153 16.2-17.3 |
| 40 | 155-165 17.5-18.6 | 159-169 18.0-19.1 |
| 44 | 155-165 17.5-18.6 | 159-169 18.0-19.1 |
| 48 | 155-165 17.5-18.6 | 159-169 18.0-19.1 |
| CLAMP SIZE |
TORQUE VALUES in-lb / Nm |
|---|---|
| 01 | 35-40 4.0-4.5 |
| 02 | 35-40 4.0-4.5 |
| 03 | 35-55 4.0-6.2 |
| 04 | 35-55 4.0-6.2 |
| 05 | 35-55 4.0-6.2 |
| 06 | 40-60 4.5-6.8 |
| 07 | 40-60 4.5-6.8 |
| 08 | 40-60 4.5-6.8 |
| 09 | 80-100 9.0-11.3 |
| 10 | 80-100 9.0-11.3 |
| 11 | 80-100 9.0-11.3 |
| 12 | 80-100 9.0-11.3 |
| THREAD SIZE |
TORQUE VALUES in-lb / Nm |
|---|---|
| 2-56 | 1.5-2.5 0.2-0.3 |
| 4-40 | 3.5-4.5 0.4-0.5 |
| 6-32 | 5.0-7.0 0.6-0.8 |
| 8-32 | 7.0-9.0 0.8-1.0 |
| 10-32 | 9.0-11.0 1.0-1.2 |
| 1/4-20 | 11.0-13.0 1.2-1.5 |
