Compaero India offers a robust range of rectangular Micro-D backshell solutions developed for compact, high-performance interconnect systems used in aerospace, defense and other mission critical applications.
Designed for compatibility with MIL-DTL-83513 (Micro-D) connectors, these backshells combine reliable mechanical protection with excellent EMI/RFI shielding in space-constrained environments.
The Series 46 range includes straight, 45° and 90° configurations with both round and elliptical cable entry options, allowing users to select the most suitable solution for their application requirements.
Multiple choices in materials, finishes, hardware and cable entry styles provide exceptional flexibility, while precision-machined construction ensures durability, reliability, consistency and performance in harsh operating conditions across land, sea, air and space platforms.
Series 46 -EMI/RFI Solid Backshell Round Entry
Series 46 -EMI/RFI Solid Backshell Round Entry
Series 46 -EMI/RFI Solid Backshell Round Entry
Series 46 -EMI/RFI Solid Backshell Round Entry
Series 46 -EMI/RFI Solid Backshell Elliptical Entry
Series 46 -EMI/RFI Solid Backshell Elliptical Entry
Series 46 -EMI/RFI Solid Backshell Elliptical Entry
Series 46 -EMI/RFI Solid Backshell Elliptical Entry
All Compaero backshells are available in a wide selection of material and plating combinations, from heavy duty marine applications to lightweight aerospace solutions, there is an option for almost any situation.
For the full list of available options, please consult www.compaeroindia.com
Please note that the colours shown above are for illustrative purposes only – actual finish colour may vary.
| CODE | MIL SPEC CODE |
MATERIAL | PLATING | PROCESS | ROHS COMPLIANT |
|---|---|---|---|---|---|
| B | - | Marine Bronze | Shotblast, Nonreflective | 1000 Hour Salt Spray, Conductive -65 to +200°C | Yes |
| C | A | Aluminum | Anodize, Black | AMS-A-8625 Type II Class 2, 336 Hour Salt Spray, Non-Conductive -65 to +175°C | Yes |
| F | N, F | Aluminum | Electroless Nickel | AMS-C-26074 Class 4 Grade B; ASTM-B-733, SC 2, Type IV, 48 Hour Salt Spray, Conductive -65 to +200°C | Yes |
| G | - | Aluminum | Anodize, Hardcoat, Black | AMS-A-8625 Type III, Class 2, .001" thick, 336 Hour Salt Spray, Non-Conductive -65 to +200°C | Yes |
| KB | B | Stainless Steel | Cadmium, Black | SAE-AMS-QQ-P-416 Type II Class 3, 1000 Hour Salt Spray, Conductive -65 to +175°C | No |
| K | S | Stainless Steel | Passivate | SAE-AMS-QQ-P-35 Type VI, 1000 Hour Salt Spray, Conductive -65 to +200°C | Yes |
| KL | - | Stainless Steel | Electrodeposited Nickel | SAE-AMS-QQ-N-290 Class 1 Grade F, 1000 Hour Salt Spray, Conductive -65 to +200°C | Yes |
| TR | - | Aluminum | Zinc-Nickel, Black | ASTM B841 Grade 5 over electroless nickel, 500 Hour Salt Spray, Conductive -65 to +175°C | Yes |
| T | - | Aluminum | Zinc-Nickel, Black | ASTM B841 Grade 5 over electroless nickel, 1000 Hour Salt Spray, Conductive -65 to +175°C | No |
| W | W | Aluminum | Cadmium, Olive Drab | SAE-AMS-QQ-P-416 Type II Class 2 over electroless nickel, 1000 Hour Salt Spray, Conductive -65 to +175°C | No |
| X | - | Aluminum | Unplated | - | Yes |
| Y | - | Aluminum | Zinc-Cobalt, Olive Drab | ASTM B 840 Grade 6 Type D over electroless nickel, 350 Hour Salt Spray, Conductive -65 to +175°C | Yes |
| ZN | - | Aluminum | Zinc-Nickel, Olive Drab | ASTM B841 Grade 5 over electroless nickel, 1000 Hour Salt Spray, Conductive -65 to +175°C | No |
| Z | - | Aluminum | Zinc-Cobalt, Black | ASTM B 840 Grade 6 Type D over electroless nickel, 350 Hour Salt Spray, Conductive -65 to +175°C | Yes |

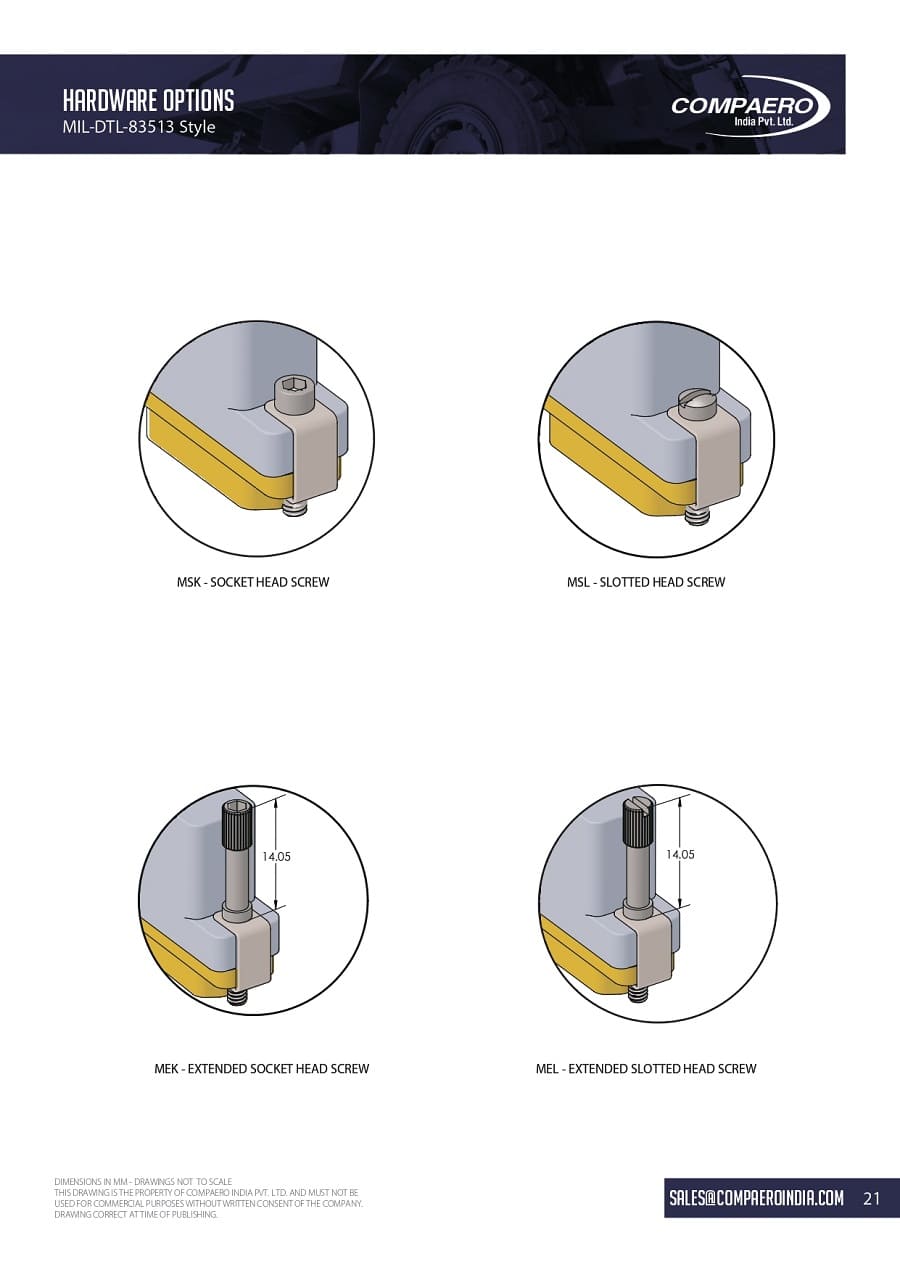

Compaero offers a range of hardware options designed to meet various installation and application requirements.
