Compaero India supply and manufacture a comprehensive range of stainless steel termination bands to be used in a wide variety of interconnect systems.
Qualified to the AS85049 standard, they provide a reliable and cost effective termination solution, available in both flat and precoiled versions

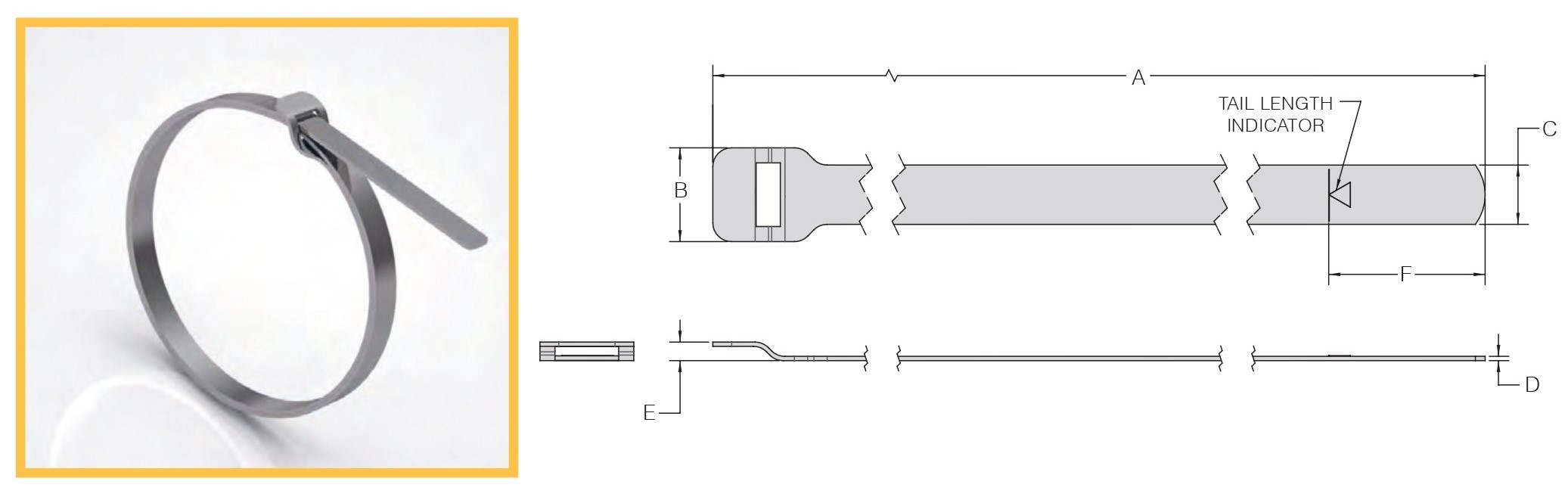

| PART NUMBER | A | B | C | D REF | E REF | F REF |
|---|---|---|---|---|---|---|
| ± .060" / 1.52mm | ± .031" / 0.79mm | ± .010" / 0.26mm | ||||
| CPTB-111* | 14.25 361.95 | 0.350 8.89 | 0.250 6.35 | 0.020 0.51 | 0.130 3.30 | 2.031 51.59 |
| CPTB-112 | 18.00 457.2 | 0.350 8.89 | 0.250 6.35 | 0.020 0.51 | 0.130 3.30 | 2.031 51.59 |
| CPTB-121* | 8.125 206.38 | 0.195 4.95 | 0.120 3.05 | 0.015 0.38 | 0.053 1.35 | 2.031 51.59 |
| CPTB-122 | 14.25 361.95 | 0.195 4.95 | 0.120 3.05 | 0.015 0.38 | 0.053 1.35 | 2.031 51.59 |

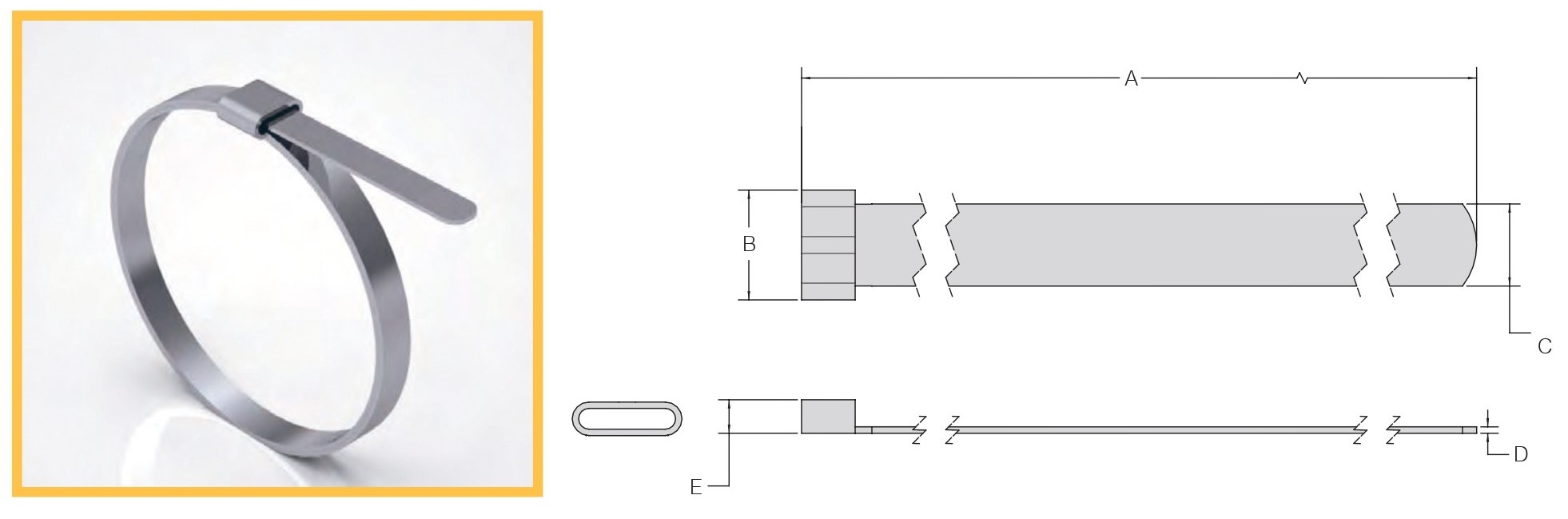

| PART NUMBER | A | B | C | D REF | E REF |
|---|---|---|---|---|---|
| ± .060" / 1.52mm | ± .031" / 0.79mm | ± .010" / 0.26mm | |||
| CPTB-211* | 14.00 355.60 | 0.328 8.33 | 0.245 6.22 | 0.019 0.50 | 0.100 2.54 |
| CPTB-212 | 18.00 457.20 | 0.328 8.33 | 0.245 6.22 | 0.019 0.50 | 0.100 2.54 |
| CPTB-221* | 9.50 241.30 | 0.198 5.03 | 0.118 2.99 | 0.015 0.40 | 0.080 2.03 |
| CPTB-222 | 14.25 361.95 | 0.198 5.03 | 0.118 2.99 | 0.015 0.40 | 0.080 2.03 |
| Description | Compaero | M85049/128 | Glenair | Band-It | Sunbank |
|---|---|---|---|---|---|
|
Stamped buckle standard band Straight |
CPTB-111 | -3 | 600-052 | A10086 / A10089 | - |
|
Stamped buckle standard band Pre coiled |
CPTB-111-1 | -4 | 600-052-1 | A10099 / A10088 | - |
|
Stamped buckle standard band Extended straight |
CPTB-112 | - | 600-090 | A11086 / A11089 | - |
|
Stamped buckle standard band Extended & pre coiled |
CPTB-112-1 | - | 600-090-1 | A11099 / A11088 | - |
|
Stamped buckle mini band Straight |
CPTB-121 | -7 | 600-057 | A31189 | - |
|
Stamped buckle mini band Pre coiled |
CPTB-121-1 | -8 | 600-057-1 | A31188 | - |
|
Stamped buckle mini band Extended straight |
CPTB-122 | - | 600-083 | A31089 | - |
|
Stamped buckle mini band Extended & pre coiled |
CPTB-122-1 | - | 600-083-1 | - | - |
|
Welded buckle standard band Straight |
CPTB-211 | -1 | - | - | S3175F-2 |
|
Welded buckle standard band Pre coiled |
CPTB-211-1 | -2 | - | - | S3175-2 |
|
Welded buckle standard band Extended straight |
CPTB-212 | - | - | - | - |
|
Welded buckle standard band Extended & pre coiled |
CPTB-212-1 | - | - | - | - |
|
Welded buckle mini band Straight |
CPTB-221 | -5 | - | - | S3175-3 |
|
Welded buckle mini band Pre coiled |
CPTB-221-1 | -6 | - | - | S3175-3C |
|
Welded buckle mini band Extended straight |
CPTB-222 | - | - | - | S3175-4 |
|
Welded buckle mini band Extended pre coiled |
CPTB-222-1 | - | - | - | S3175-4C |
